Frame
frame

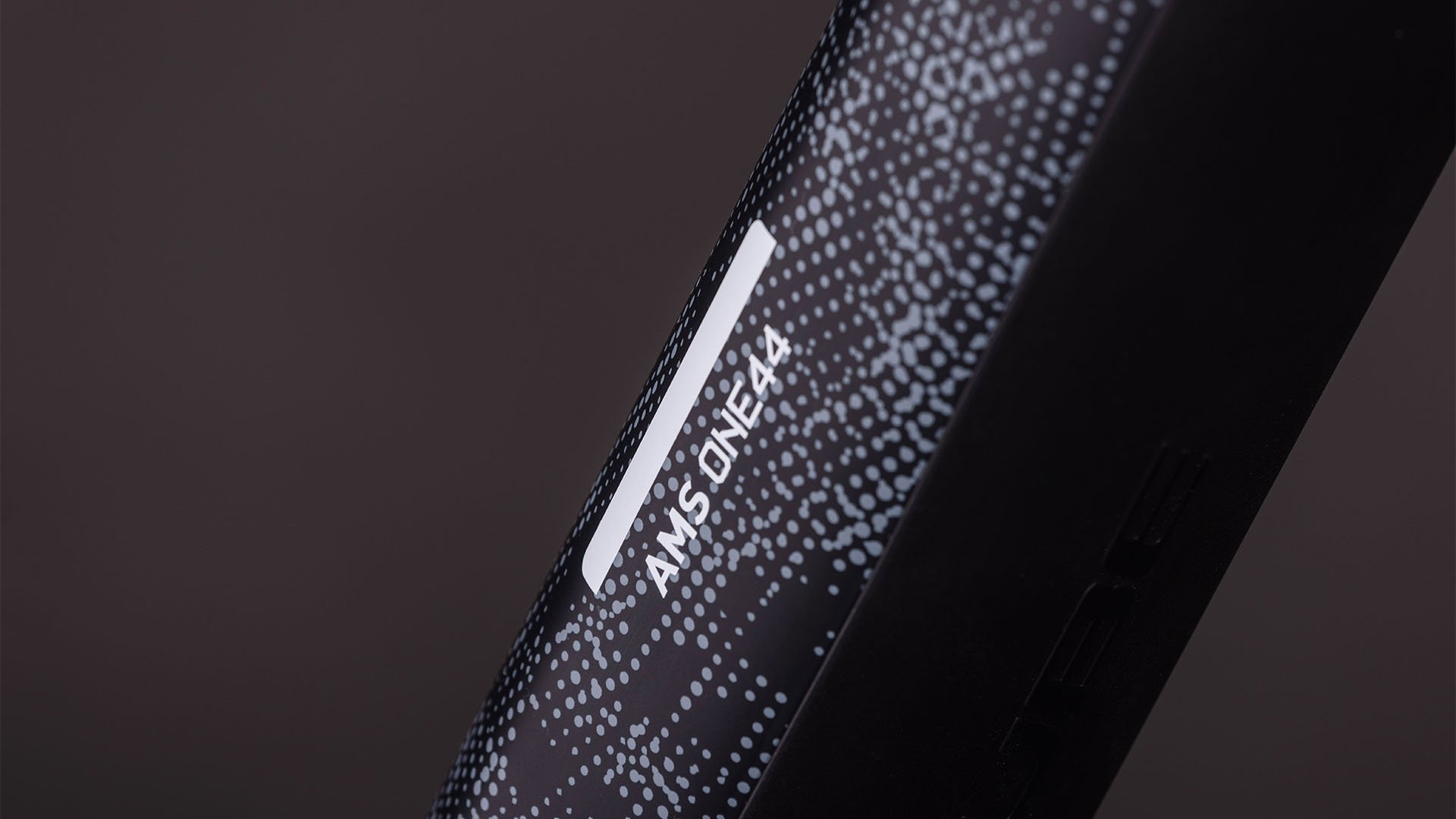

C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
size
S, M, L, XL
Suspension
Suspension fork
Fox 34 Float Factory FIT GRIP2, Tapered, 15x110mm, 140mm, Kashima Coated
shock
Fox Float Factory, 210x55mm, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
shock hardware
Front: 30x8mm, Rear: DU-Bushing 12,7mm
E-bike system
drive unit
Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
Remote
Bosch System Control, incl. Mini Remote
battery
Bosch CompactTube 400
charger
Bosch 4A
Drivetrain & brakes
brake system
Shimano XTR BR-M9100, Hydr. Disc Brake (180/180)
rear derailleur
Shimano XTR RD-M9100-SGS, ShadowPlus, 12-Speed
shifters
Shimano XTR SL-M9100-I, Direct Attach
crankset
e*thirteen e*spec Race Carbon Crank, 32T
cassette
Shimano XTR CS-M9101-12, 10-51T
chain
Shimano CN-M9100
chain guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
headset
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment
integrated bar/ stem
CUBE Stereo Carbon Cockpit System
grips
ACID Disrupt, Soft Compound
Wheels
wheelset
Newmen Advanced SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
front tyre
Maxxis Rekon Maxxterra/EXO, Tubeless Ready, 2.4 WT
rear tyre
Maxxis Rekon Race, EXO, Tubeless Ready, 2.4 WT
Finishing kit
saddle
Natural Fit Nuance SLT Carbon
seat post
Fox Transfer SL Factory, 31.6mm, Kashima Coated
Product information
colour
carbon´n´golddust
weight
16,2 kg
Art. No
804300
