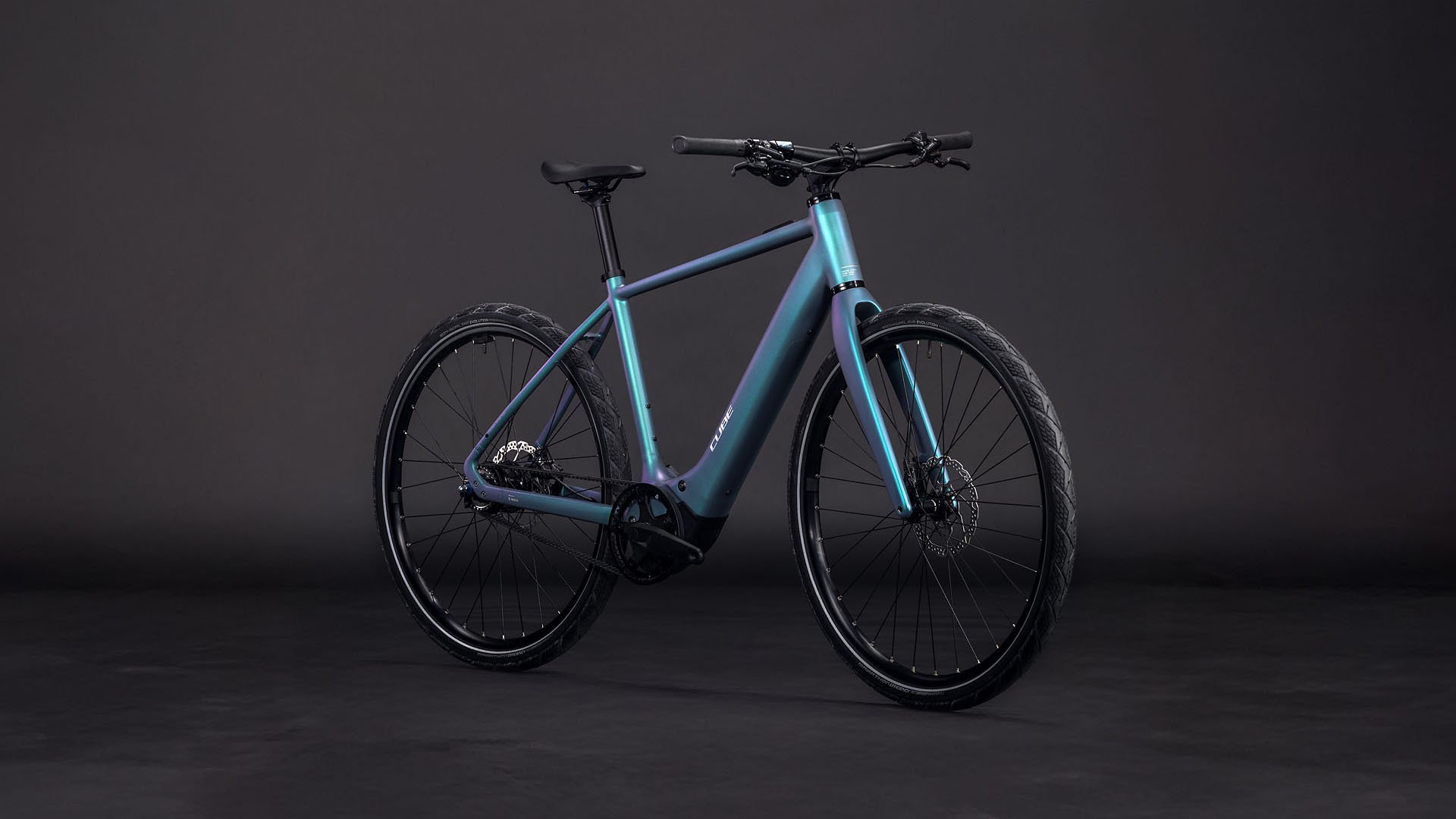

EDITOR HYBRID SLT 400X

SLT 400X

simpli CITY

A practical urban bike should be elegant, understated and versatile. That’s why, for the Editor Hybrid’s frame, we started with lightweight and durable aluminium and then added Smooth Welding at the main tube joints – so it has a clean, almost organic appearance. Cables are fully integrated for longer service life and to complement the uncluttered aesthetic, and we even integrated the 400Wh battery in the down tube and mini controller in the top tube. And the full carbon fork is light, strong and suits the frame’s pared-back aesthetic. We think we ticked all the boxes.

Two wheels are where it’s at for getting around town. Designed to fit seamlessly into the urban landscape and your busy life, the Editor Hybrid SLT 400X’s belt drive gears and lightweight Bosch SX motor make it the ultimate way to beat the traffic and arrive in style.

EDITOR HYBRID SLT 400X

CARBON FORK

How important is material choice? When it comes to the fork that holds your front wheel, more important than you might think. Not only is our Carbon Fork exceptionally light and strong, it’s also surprisingly comfortable to ride. And, when you’re weaving your way through city streets, those are all qualities that you’ll appreciate.

ADVANCED INTERNAL CABLE ROUTING

Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

FIXED INTEGRATED BATTERY

Bosch SX technology incorporates a new, lighter and more configurable battery setup. To make the most of the weight saving, we’ve integrated the new battery fully into the down tube. This means we can position it optimally for the best weight distribution and handling, as well as saving more weight by building a down tube that’s precisely the right size to fit, and without the need for an access hatch. And the Power More option means you can add an additional 250Wh battery quickly and simply, for extra range. It’s the best of both worlds.

SMOOTH WELDED HEAD TUBE

Our Smooth Welded Head Tube undoubtedly looks great, with top and down tubes appearing to almost flow into it. But there’s more to it than that, because this almost organic approach to frame design also helps to distribute stress loads more evenly around this critical frame junction. The result? Amazing looks and better strength and durability.

FENDER & RACK OPTION

A gravel bike is a supremely versatile beast, which is why all our gravel models have a fender and rack option. With generous frame clearances to fit comfortable, safe and grippy tyres even with full length mudguards, we also neatly integrated the rear rack into the mudguard design – and included a rear light, too.

Frame

frame

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, Advanced Internal Cable Routing, Slider Dropout

size

50 cm, 54 cm, 58 cm, 62 cm

Rigid fork

CUBE Editor Full Carbon, 1 1/8″ — 1 1/2″ Tapered, Internal Cable Routing, 12x100mm

E-bike system

drive unit

Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System

Remote

Bosch System Control, incl. Mini Remote

battery

Bosch CompactTube 400

charger

Bosch 4A

Drivetrain & brakes

brake system

Shimano Deore BR-M6100, Hydr. Disc Brake (180/180)

shifters

Shimano Alfine SL-S700

crankset

ACID MTB Hybrid Pro, 52T

sprocket

Gates Rear Sprocket CDC, 24T

drive belt

Gates CDC, 125T

Cockpit

Stem

CUBE Performance Stem Pro, 31.8mm

handlebar

CUBE Rise Trail Bar, 680mm

grips

ACID Hybrid Tour

Wheels

front hub

Shimano Tiagra HB-RS470, 12x100mm, Centerlock

rear hub

Shimano Alfine SG-S7001, 11-Speed

tyres

Schwalbe Marathon Efficiency, RaceGuard, 50-622

Finishing kit

saddle

Natural Fit Venec

seat post

CUBE Performance Post, 30.9mm

pedals

CUBE PP MTB

bell

Knog Oi

Product information

colour

goblin´n´glossy

weight

17,7 kg

Art. No

823300
