EDITOR HYBRID SLX FE 400X

SLX FE 400X

simpli CITY

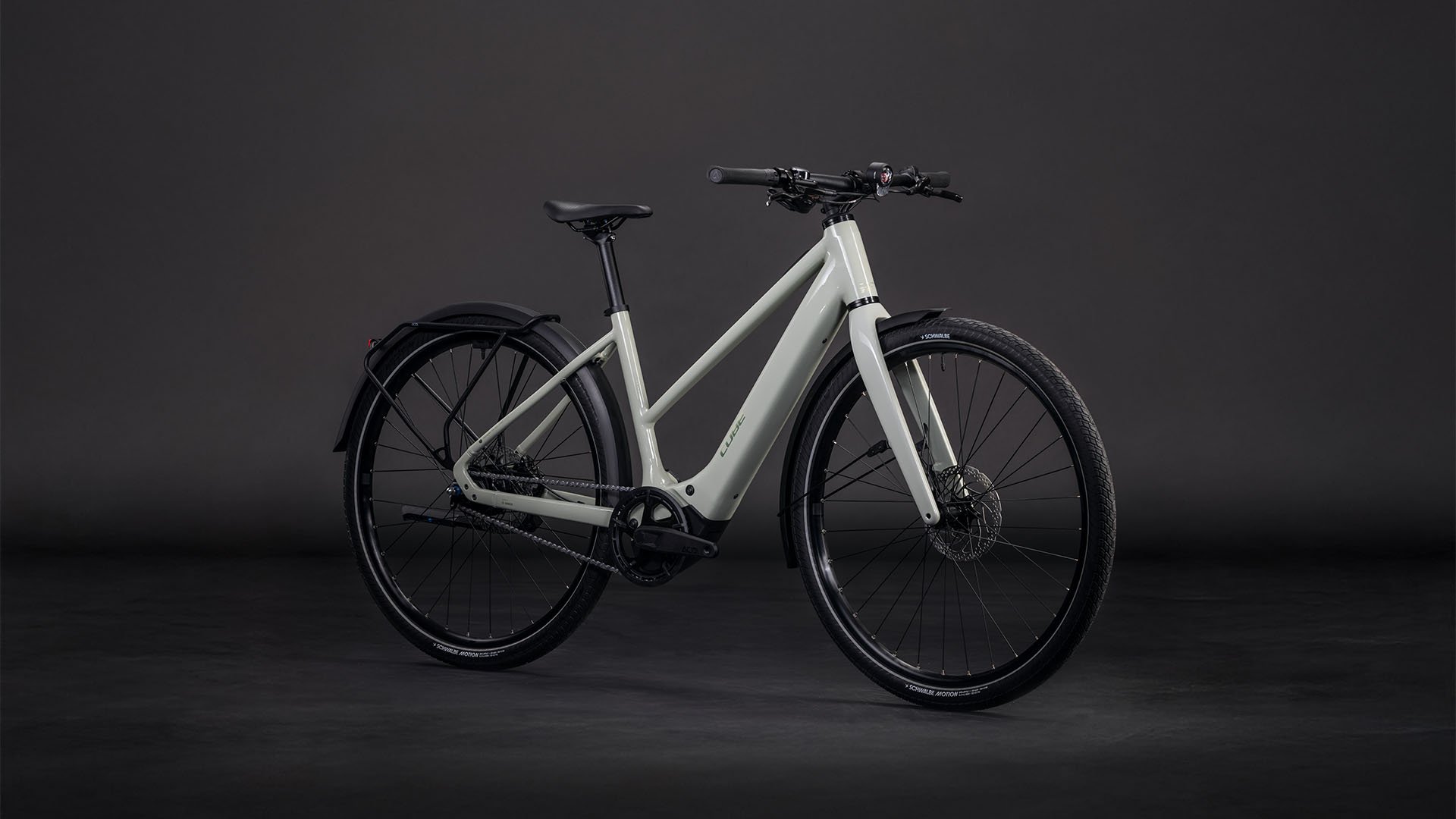

So sleek and understated is the Editor Hybrid FE’s frame, at first glance it barely looks like an e-bike. Lightweight, durable aluminium construction with Smooth Welding at the main tube joints creates an elegant frame, while the full carbon fork is both light and strong. We integrated the cables for long service life and better looks, and the 400Wh battery is built into the down tube to save space and weight. There’s a versatile, rugged rear carrier and an optional front carrier for carrying your belongings. And we included full mudguards, a bright lighting set and a practical kickstand, so you’ve got everything you need.
Life can come at you pretty fast – and that’s where the Editor Hybrid SLX FE 400X comes in. With its lightweight Bosch SX power, elegant design and practical components including rear carrier, lights, mudguard and kickstand, there’s no better way to keep up with a busy schedule.

EDITOR HYBRID SLX FE 400X

How important is material choice? When it comes to the fork that holds your front wheel, more important than you might think. Not only is our Carbon Fork exceptionally light and strong, it’s also surprisingly comfortable to ride. And, when you’re weaving your way through city streets, those are all qualities that you’ll appreciate.
Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.
Bosch SX technology incorporates a new, lighter and more configurable battery setup. To make the most of the weight saving, we’ve integrated the new battery fully into the down tube. This means we can position it optimally for the best weight distribution and handling, as well as saving more weight by building a down tube that’s precisely the right size to fit, and without the need for an access hatch. And the Power More option means you can add an additional 250Wh battery quickly and simply, for extra range. It’s the best of both worlds.
Our Smooth Welded Head Tube undoubtedly looks great, with top and down tubes appearing to almost flow into it. But there’s more to it than that, because this almost organic approach to frame design also helps to distribute stress loads more evenly around this critical frame junction. The result? Amazing looks and better strength and durability.
A gravel bike is a supremely versatile beast, which is why all our gravel models have a fender and rack option. With generous frame clearances to fit comfortable, safe and grippy tyres even with full length mudguards, we also neatly integrated the rear rack into the mudguard design – and included a rear light, too.

Рама

рама

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, Advanced Internal Cable Routing, Slider Dropout

размер

50 cm, 54 cm, 58 cm, 62 cm

жесткая вилка

CUBE Editor Full Carbon, 1 1/8″ — 1 1/2″ Tapered, Internal Cable Routing, 12x100mm

Система электровелосипеда

мотор

Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System

пульт управления

Bosch System Control, incl. Mini Remote

аккумулятор

Bosch CompactTube 400

зарядное устройство

Bosch 4A


Трансмиссия и тормоза

тормозная система

Shimano BR-MT200, Hydr. Disc Brake (180/180)

манетки

Shimano Alfine SL-S7000

шатуны

ACID MTB Hybrid Pro, 44T

цепь

KMC Z610

звездочка

Shimano Nexus, 18T

Кокпит

вынос

CUBE Performance Stem Pro, 31.8mm

руль

CUBE Rise Trail Bar, 680mm

грипсы

ACID Hybrid Tour

Колеса

передняя втулка

Shimano Tiagra HB-RS470, 12x100mm, Centerlock

задняя втулка

Shimano Alfine SG-S7001, 8-Speed

шины

Conti Contact Urban, 50-622

Комплектующие

седло

Natural Fit Venec

подседельный штырь

CUBE Performance Post, 30.9mm

педали

CUBE PP MTB

передний фонарь

ACID Front Light PRO-E 110, 5-16V, DC

задний фонарь

ACID Mudguard Rear Light PRO-E, 12V, DC

подножка

ACID FM Pure Kickstand

крылья

ACID 60 BB-Mount

звонок

Knog Oi

багажник

ACID Gravel

Информация о продукте

цвет

sleekgrey´n´spectral

вес

19,2 кг

Арт. №

823210
