Frame
frame
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Suspension
Suspension fork
Fox 36 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm
shock
Fox Float Performance, 230x60mm (27.5: 210x55mm), Open/Firm Mode
shock hardware
Front: 30x8mm, Rear: DU-Bushing 12,7mm
E-bike system
drive unit
Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
Remote
Bosch System Control, incl. Mini Remote
battery
Bosch PowerTube 800
display

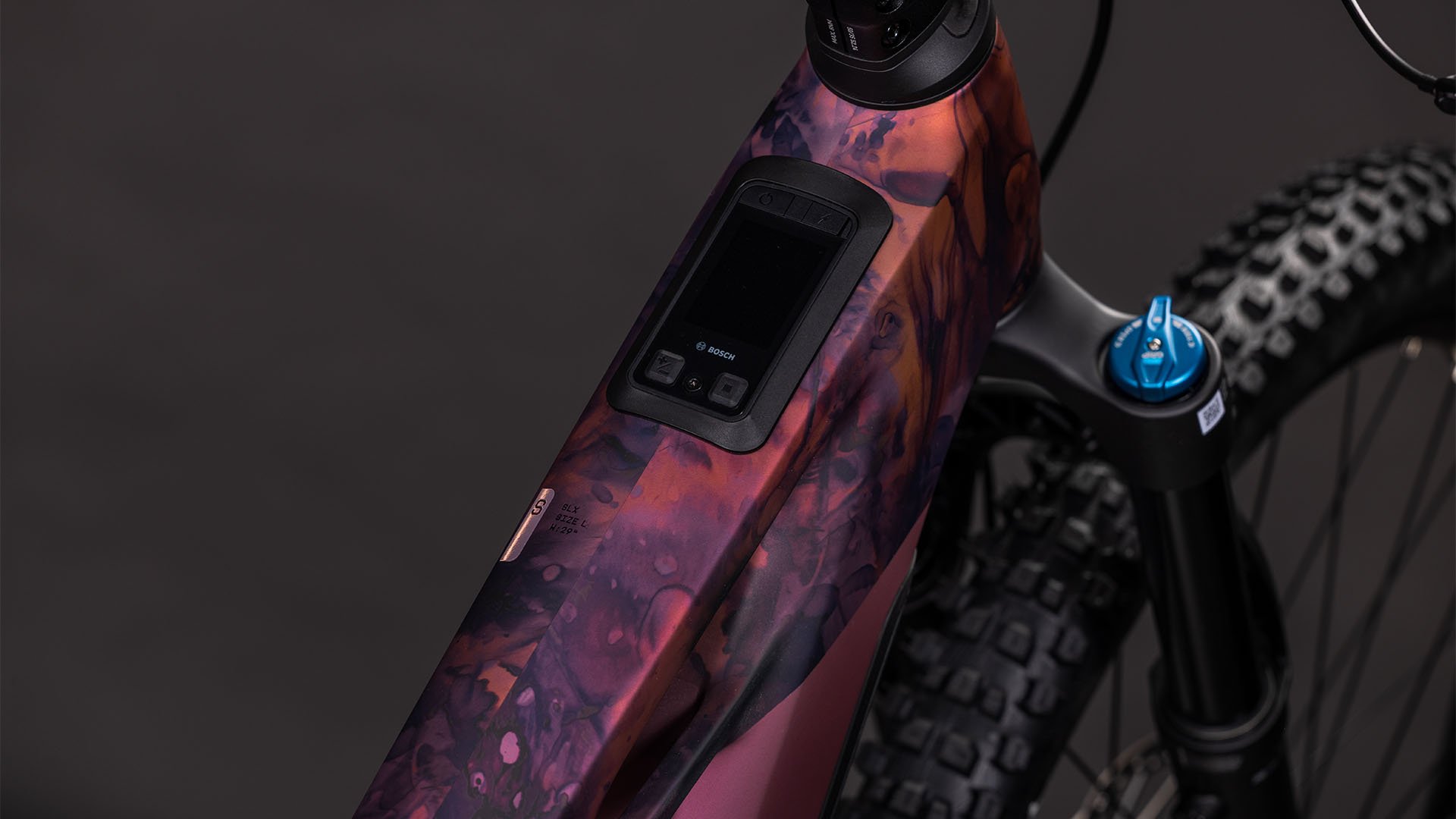

Bosch Purion 400
charger
Bosch 4A
Drivetrain & brakes
brake system
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
rear derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
shifters
Shimano XT SL-M8100-IR, Direct Attach
crankset
ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
cassette
Shimano Deore CS-M6100, 10-51T
chain
KMC e12
chain guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
headset
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Stem
CUBE Performance Stem E-MTB 35, FPI-Link
handlebar
CUBE Rise Trail Bar 35
grips
ACID Disrupt
Wheels
wheelset
Newmen Performance 30, 28/32 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready
front tyre
Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
rear tyre
Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6
Finishing kit
saddle
ACID Venec EMTB Trail 140
seat post
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Product information
colour
slabgrey´n´orange
weight
24,4 kg
Art. No
802500
